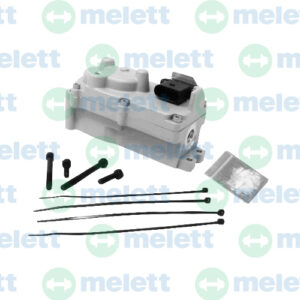

Replaces: 6382096, 4034315, 5601240, 5579127, 3785180, 3788936

Suitable for CUMMINS ISB6.7 Dodge RAM EPA13/17/21

Turbo model: HE300VG

Notes: Internally cooled. Includes installation kit.

Please ensure part number cross-reference is checked before installation and calibration, as this actuator must only be used on OE part numbers listed in our catalogue. Warranty may be void if used on incorrect or modified applications.
Melett Holset VGT actuators have been confirmed to be compatible with the following calibration tools:

• Holset eTool
• ATS Tester
• CIMAT Turbotest
• Turboclinic – Turboscope.

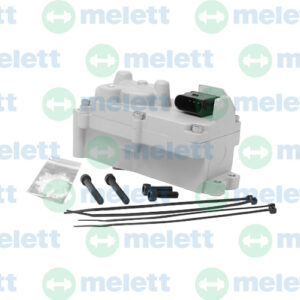

Replaces: 6382093, 6374772, 5452695, 4034188, 4034429

Suitable for: CUMMINS X15 EPA17

Turbo model: HE400VG

Notes: Internally cooled. Includes installation kit.

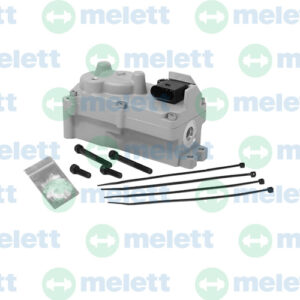

Replaces: 6382091, 5452687, 3778620, 3790798, 3788938, 5496045

Suitable for: CUMMINS ISB 6.7 Commercial/ ISL 8.9 Commercial EPA13/17

Turbo model: HE300VG

Notes: Internally cooled. Includes installation kit.

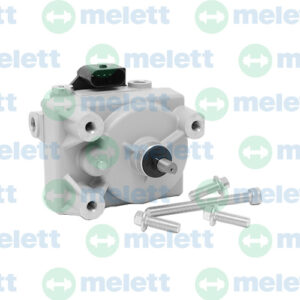

Replaces: 5454802

Suitable for: BEIJING FOTON INDUSTRIAL, CUMMINS, DAF Truck – ISB 4.5D Euro 6

Turbo model: HE200VG

Notes: Includes installation kit.

Typically used on externally cooled actuator models. OE Part reference: 4032194 / 4034193 / 4032846 / 4031365

Wire Ties x 6
Locating pin x1
Grease Packet x1
Mounting Bolt x4

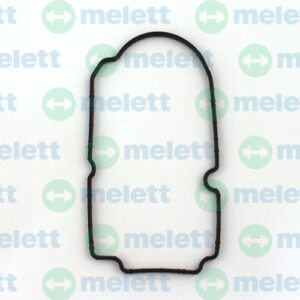

Actuator Mounting Gasket/Seal x1

Typically used on internally cooled actuator models. OE Part reference 4032075H.

Wire Ties x 4
Mounting Bolt x 4
Actuator MountingGasket/Seal x 2
Grease Packet x 1

OE part number = 5347703

Part of OE Actuator kit 4034315 and typically used on EPA07 to EPA13 HE300VG application.

4 pin actuator connector

Connector is not supplied with screws.  These can be purchased individually – Part number 1100-025-620.
